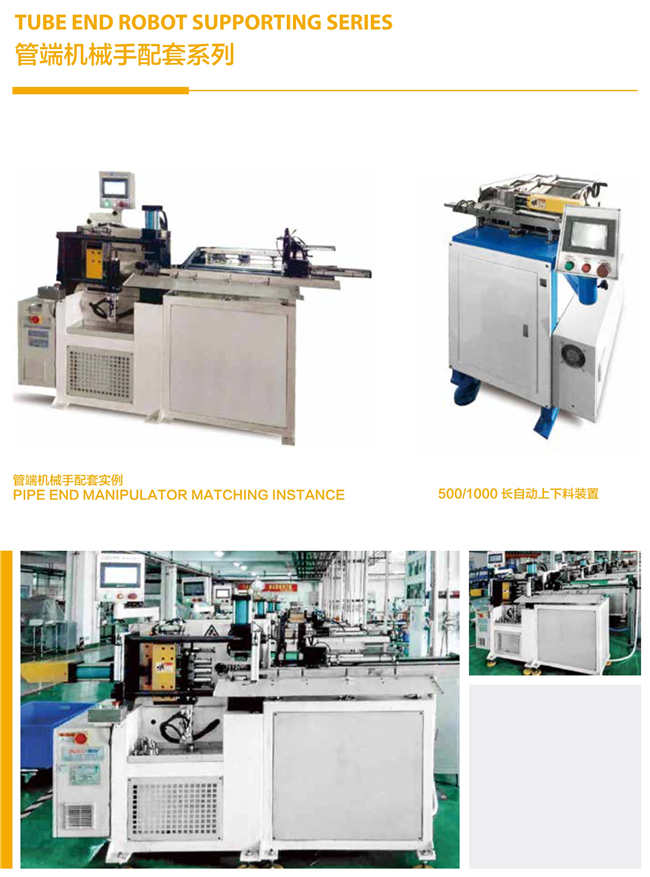

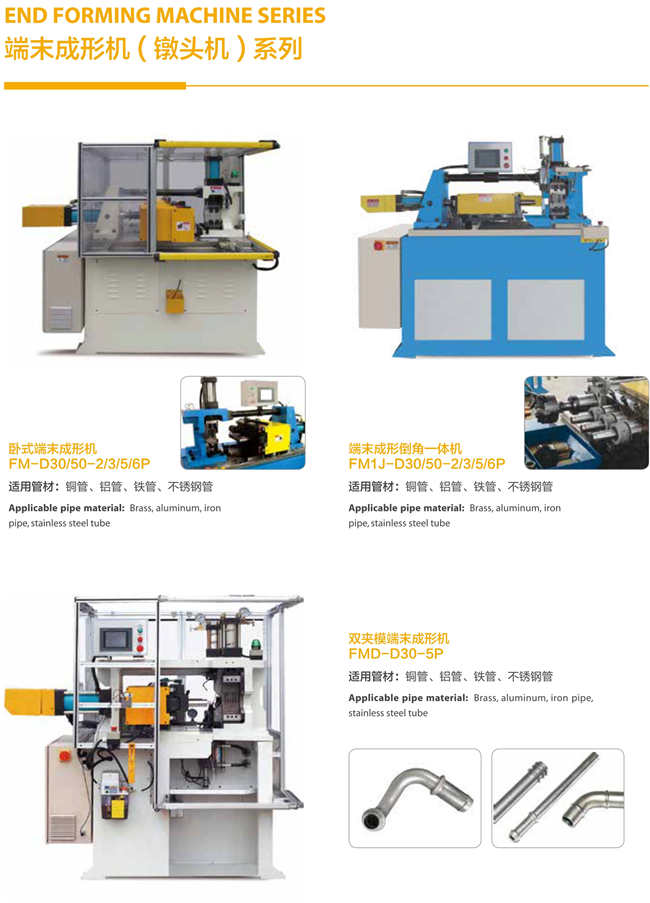

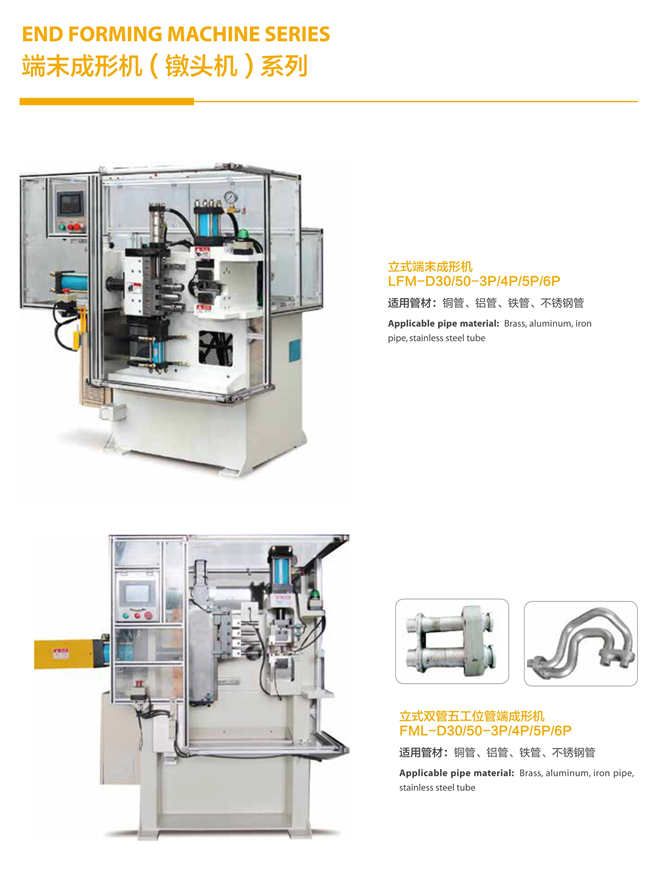

Tube-end forming machine is widely used for the processing and forming of connecting parts of pipe fitting, automobile oil pipe, water pipe, air conditioning pipe, etc. It is an ideal configuration for tube-end forming. Tube-end forming machine is a kind of processing and forming configuration for pipe fitting to expand, shrink and shrink under normal conditions. It is controlled by integrated touch display screen.The use of different molds can be used to expand, shrink, shrink, bulge, pier reinforcement, and according to user requirements to accept manual, inching or automatic processing.The tension is composed of oil tank, body, slider, main oil cylinder, limit oil cylinder, pressure oil cylinder, displacement oil cylinder, axial positioning oil cylinder and axial positioning contact iron and other parts.

The tube end forming machine is suitable for processing the large shape of tube end.With three stations, can change the mold automatically, guarantee the machining accuracy.Manual automatic arbitrary selection, NC control, Chinese performance, man-machine dialogue operation, and automatic counting results.Change mold, shrink tube, flaring can be processed, at the same time with chamfering die, so that the processing chamfering can be completed at one time.

In the main oil cylinder circuit set up a tube-type saving valve, so as to adjust the main oil cylinder things speed;A superimposed hydraulic control one-way valve is set on the return circuit of the pressing oil cylinder to ensure that the clamping process of the mold is not loose;Superposition type bidirectional saving valve is set on the return circuit of shift cylinder, limit cylinder and axial positioning cylinder to adjust the bidirectional movement speed of the oil cylinder.The shift cylinder and limit cylinder use the transfer station together, which can make the transfer station convenient and accurate, so as to ensure the quality of pipe fitting processing.
