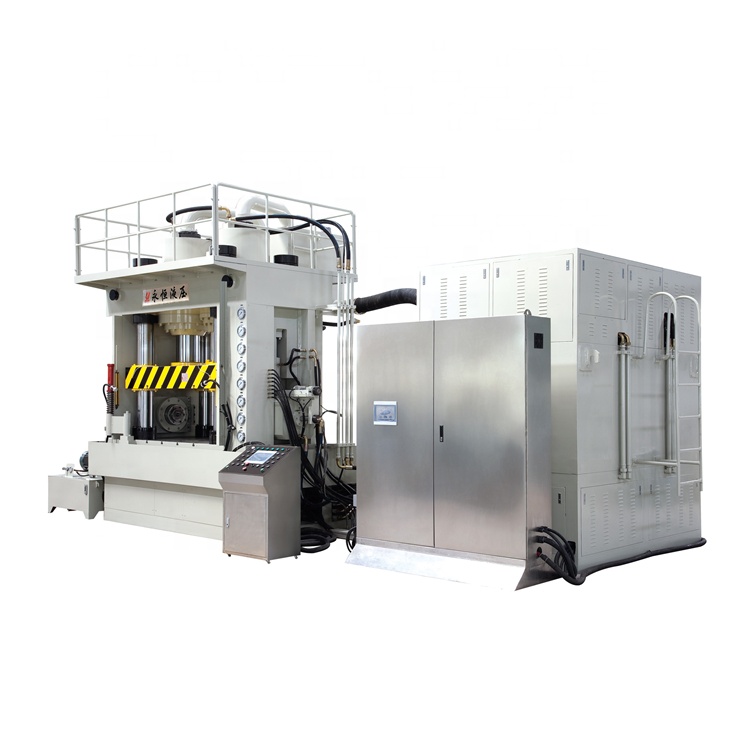

The 100-5000T Ton Frame-Type Internal High-Pressure tube Hydroforming Metal Press Machine

Packaging & Delivery

Packaging Details

1.Machine is packed by steel Frame and wrapped with PE film for waterproof. 2.Spare parts will be packed by carton. 3.Steel Size is according to machine size. 4.If special requests is need, kindly let us know.

High-pressure hydroforming press is suitable for forming hollow components with various complicated shapes in fields of areospace, nuclear power, petrochemical, water system, automobiles and bicycles components manufacturing. The main product include hollow components, hollow shaft and camshaft components of engines, chassis components of automobile, metal pipes and pipe fittings with complex shape of intake/exhaust system.

Product Application

It is special equipments designed and manufactured for the realization of this process.The machine can be used for the hydroforming process of steel tube,thermos flask,water bottle and other tableware and containers made of stainless steel ,cooper,aluminum,iron and other materials.

Advantages

A.Low energy consumption,and small noise B.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing C.Safety protection device should be equipped to provide security guarantee for the operators D.Auto count function should be equipped. E.The deep drawing force and blank holder force are adjustable F.Mitsubishi PLC control,touching screen display

Our Company

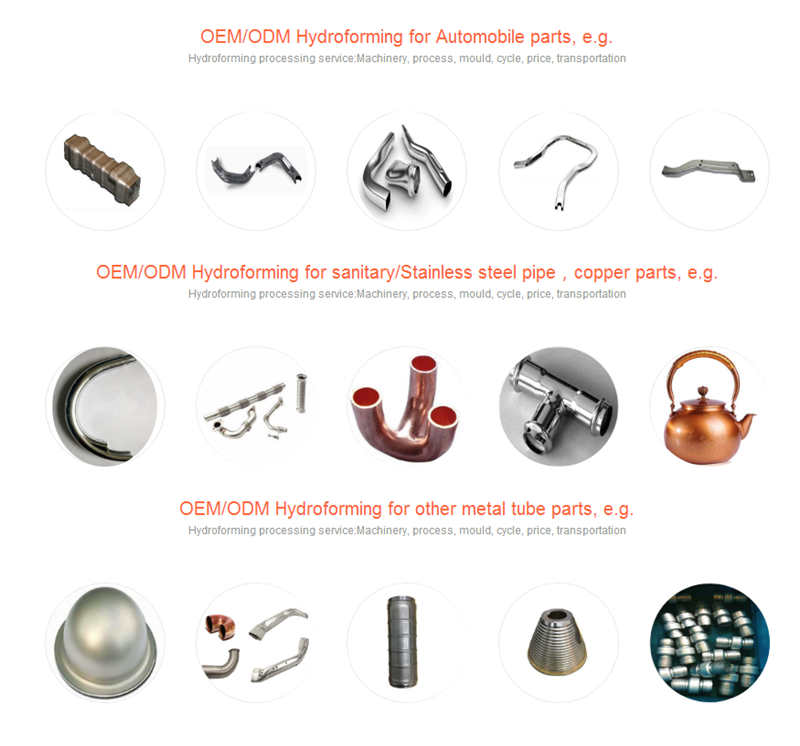

hydroforming processing products

Partnership

Performances and Features

1.Product quality and productivity improvement: Compared with traditional technology, this series of equipment can improve product quality and performance, and significantly enhance the production efficiency 2.Reduction of production costs: High utilization of product materials, equipment energy conservation, increasing production efficiency so as to reduce production costs 3. Control precision Entirely controlled by servo system and PLC programmable controller, so as to improve working accuracy 4. High stability, energy-saving, low noise Servo control results stable and reliable operation, achieves 40%-60% energy conservation and the conversion between the high and low speed inside the motor is relatively stable, resulting in much lower working noise 5.Excellent performance, accurate operation Main hydraulic parts, electrical components, seals are used imported brand-name products, so that to reduce maintenance rates, increase the service lifespan, also to ensure the accuracy of work 6.Safety and reliability Equipped with safety photoelectric protection device, motor short circuit, overload and short phase protection, as well as limit switches on the master and pressurize the cylinder 7.Aesthetics Compact structure, beautiful appearance, easy maintenance

The application of Pipe

Pipe joint hydroforming press is especially suitable for one-time hydro-forming of three-way pipe, four-way pipe, T-type pipe, Y-type pipe, L-type pipe and other complex shape tubular components made of red copper, bronze, stainless steel, aluminum alloy and composite materials Instead of traditional plastic bulging, lead bulging, stamping and welding process, hydro-forming characterized high forming efficiency, high precision and good quality of product surface advantages Typical products include aluminum and stainless steel pipe joint fittings, pipe fittings for bicycle, pipe adapter of car engines, water pipeline, pipe fittings for refrigeration systems and kitchen/bathroom appliance

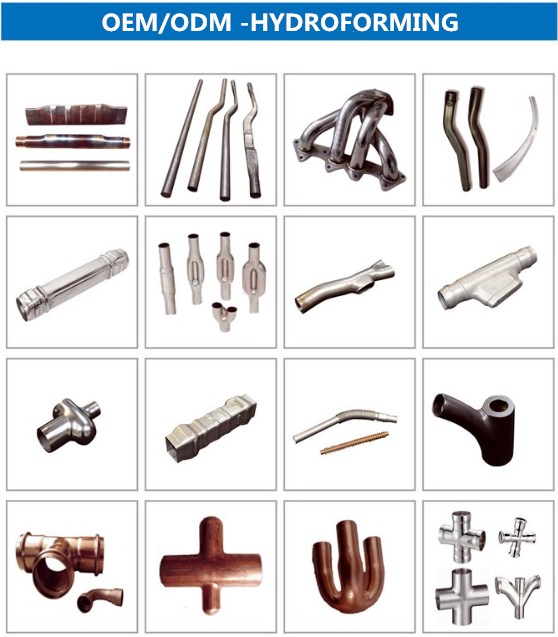

Other hydroforming products

Company brief introduction

Yongheng is a manufacturing company that has been committed to the design, development, production, sales and service of intelligent hydro-forming machinery and equipment, with its core technology as internal high-pressure forming technology and dominance in internal high-pressure hydro-forming press, water bulging press, three-way tube hydro-forming press, multi-station hydraulic forming press, sheet material hydro-forming press, hydraulic drawing press, hydraulic extruder, frame structure hydraulic press and other equipment. Moreover, we able to meet customers' requirement to design and produce specialized nonstandard machines, customized oil cylinders, customized hydraulic systems as well as provide automation transmission systems. The products are widely apply to the industry of aerospace, auto accessories, bicycle accessories, hardware and tools, instrument, kitchen ware, household appliances and stainless steel ware, etc. The company is equipped with a technology and research center for internal high pressure hydro-forming technology. Long-term cooperated research projects are carried out with college and institutions, such as the Institute of metal research of Chinese Academy of Sciences, Nanjing University of Aeronautics, etc., which has promoted the establishment of the model base for industrialization of hydro-forming technology. Furthermore, with lead-edge technology at home and abroad, the company has been improving the brand's value of "Yongheng Machinery", as well as to create national brand in hydro-forming technology. Transaction level
